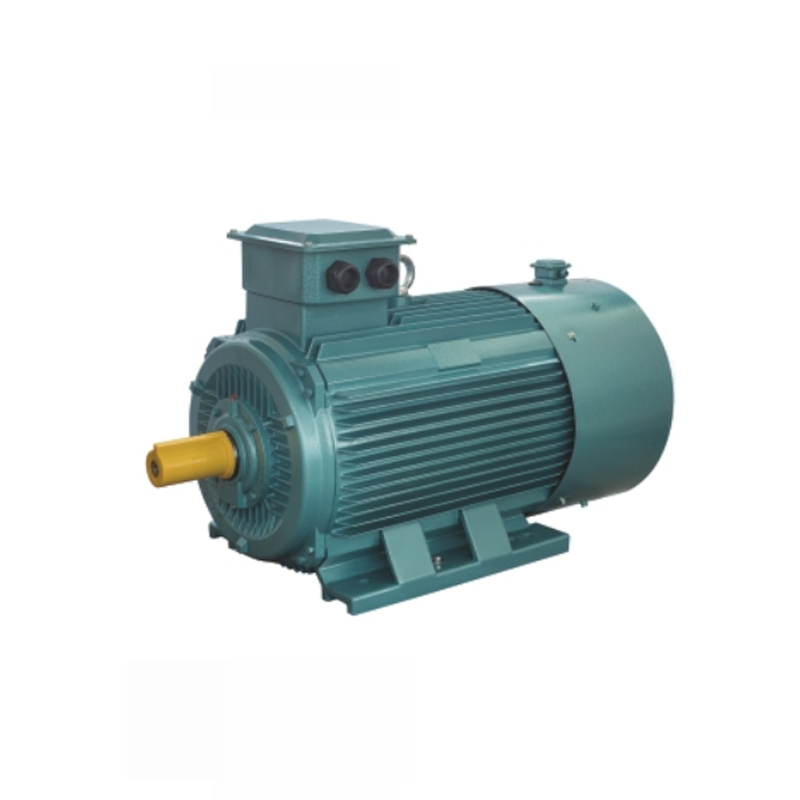

YVF2系列變頻調速三相異步電動機，是在普通系列電動機的基礎上派生的，相同的功率所對應的機座號及安裝尺寸與普通系列一致，但外形總長度有適當增加。
YVF2系列電動機采用單獨的軸流風機作為冷卻風源，保證了電動機在低頻時的溫升。
YVF2系列電動機能與國內外各種變頻裝置相配套，所組成的調速系統具有節能明顯、調速范圍廣、過載能力強、低速性能好等特點，可廣泛應用于冶金、礦山、石化、紡織、輕工、造紙等場合。
產品相關參數：
防護等級：IP55
冷卻方式：IC416
絕緣等級：F級
極數：2.4.6.8.10極
接法：功率在55kW及以下為Y接法，
功率在55kW以上為△接法
額定電壓：380V
基準頻率：50Hz
工作方式：S1（連續工作制）
海拔不超過1000m
環境溫度：-15℃~+40℃
如需更多信息，請發送電子郵件或撥打我們的熱線電話
| YVF2系列電動機技術參數Technical parameters of YVF2 series motors | |||||||||||
| 型號 | 額定功率Output | 額定電壓 Nominal voltage | 額定電流 Current (A) | 額定轉矩 RT (N.m) | 恒轉矩調速范圍 Constant torque speed regulation range (Hz) | 恒功率調速范圍 Constant power speed range (Hz) | 堵轉轉矩LRT | 最大轉矩BDT | 堵轉電流LRA | 重量weight(kg) | |
| Type | (kw) | (HP) | 額定轉矩RLT | 額定轉矩RLT | 額定電流RLA | ||||||
| 同步轉速3000rmin(2極)Synchronous Speed3000 r/min(2p) | |||||||||||
| YVF2-80M1-2 | 0.75 | 1 | 380 | 1.9 | 2.4 | 5-50 | 50-60 | 2.2 | 2.8 | 9 | 16 |
| YVF2-80M2-2 | 1.1 | 1.5 | 2.68 | 3.5 | 5-50 | 50-60 | 17 | ||||
| YVF2-90S-2 | 1.5 | 2 | 3.51 | 48 | 5-50 | 50-60 | 21 | ||||
| YVF2-90L-2 | 2.2 | 3 | 4.93 | 7 | 5-50 | 50-60 | 25 | ||||
| YVF2-100L-2 | 3 | 4 | 6.4 | 9.6 | 5-50 | 50-60 | 32 | ||||
| YVF2-112M-2 | 4 | 5.5 | 8.3 | 12.7 | 5-50 | 50-60 | 41 | ||||
| YVF2-132S1-2 | 5.5 | 7.5 | 11.2 | 17.5 | 5-50 | 50-60 | 66 | ||||
| YVF2-132S2-2 | 7.5 | 10 | 14.9 | 23.9 | 5-50 | 50-60 | 67 | ||||
| YVF2-160M1-2 | 11 | 15 | 21.4 | 35 | 5-50 | 50-60 | 108 | ||||
| YVF2-160M2-2 | 15 | 20 | 28.9 | 47.8 | 5-50 | 50-60 | 118 | ||||
| YVF2-160L-2 | 18.5 | 25 | 35.4 | 58.9 | 5-50 | 50-60 | 137 | ||||
| YVF2-180M-2 | 22 | 30 | 41.8 | 70 | 5-50 | 50-60 | 170 | ||||
| YVF2-200L1-2 | 30 | 40 | 56.5 | 95.5 | 5-50 | 50-60 | 225 | ||||
| YVF2-200L2-2 | 37 | 50 | 69.3 | 117.8 | 5-50 | 50-60 | 250 | ||||
| YVF2-225M-2 | 45 | 60 | 83.8 | 143.3 | 5-50 | 50-60 | 290 | ||||
| YVF2-250M-2 | 55 | 75 | 102 | 175.1 | 5-50 | 50-60 | 404 | ||||
| YVF2-280S-2 | 75 | 100 | 138 | 238.8 | 5-50 | 50-60 | 1.7 | 512 | |||
| YVF2-280M-2 | 90 | 125 | 165 | 286.5 | 5-50 | 50-60 | 558 | ||||
| YVF2-315S-2 | 110 | 150 | 199 | 350.2 | 5-50 | 50-60 | 924 | ||||
| YVF2-315M-2 | 132 | 180 | 238 | 420.2 | 5-50 | 50-60 | 1050 | ||||
| YVF2-315L1-2 | 160 | 220 | 285 | 509.3 | 5-50 | 50-60 | 1080 | ||||
| YVF2-315L-2 | 185 | 250 | 329 | 588.9 | 5-50 | 50-60 | 1090 | ||||
| YVF2-315L2-2 | 200 | 270 | 355 | 636.7 | 5-50 | 50-60 | 1100 | ||||
| YVF2-355M1-2 | 220 | 300 | 391 | 700.3 | 5-50 | 50-60 | 1560 | ||||
| YVF2-355M2-2 | 250 | 340 | 444 | 795.8 | 5-50 | 50-60 | 1610 | ||||
| YVF2-355L1-2 | 280 | 380 | 497 | 891.3 | 5-50 | 50-60 | 1700 | ||||
| YVF2-355L2-2 | 315 | 430 | 560 | 1002.8 | 5-50 | 50-60 | 1740 | ||||
| 同步轉速1500rmin(4極)Synchronous Speed1500r/min(4P) | |||||||||||
| YVF2-80M1-4 | 0.55 | 0.75 | 380 | 1.61 | 3.5 | 5-50 | 50-100 | 2.2 | 2.8 | 9 | 16 |
| YVF2-80M2-4 | 0.75 | 1 | 2.08 | 4.8 | 5-50 | 50-100 | 17 | ||||
| YVF2-90S-4 | 1.1 | 1.5 | 2.89 | 7 | 5-50 | 50-100 | 21 | ||||
| YVF2-90L-4 | 1.5 | 2 | 3.78 | 9.6 | 5-50 | 50-100 | 25 | ||||
| YMVF2-100L1-4 | 2.2 | 3 | 5.2 | 14 | 5-50 | 50-100 | 34 | ||||
| YVF2-10024 | 3 | 4 | 6.9 | 19.1 | 5-50 | 50-100 | 35 | ||||
| YVF2-112M-4 | 4 | 5.5 | 9 | 25.5 | 5-50 | 50-100 | 45 | ||||
| YVF2-132S-4 | 5.5 | 7.5 | 12 | 35 | 5-50 | 50-100 | 67 | ||||
| YVF2-132M-4 | 7.5 | 10 | 16 | 47.8 | 5-50 | 50-100 | 80 | ||||
| YVF2-160M-4 | 11 | 15 | 23 | 70 | 5-50 | 50-100 | 116 | ||||
| YVF2-160L-4 | 15 | 20 | 30.6 | 95.5 | 5-50 | 50-100 | 135 | ||||
| YVF2-180M-4 | 18.5 | 25 | 37 | 117.8 | 5-50 | 50-100 | 174 | ||||
| YVF2-180L-4 | 22 | 30 | 43.7 | 140.1 | 5-50 | 50-100 | 190 | ||||
| YVF2-200L-4 | 30 | 40 | 59.1 | 191 | 5-50 | 50-100 | 251 | ||||
| YVF2-225S-4 | 37 | 50 | 71.7 | 235.6 | 5-50 | 50-100 | 288 | ||||
| YVF2-225M-4 | 45 | 60 | 86.7 | 286.5 | 5-50 | 50-100 | 296 | ||||
| YVF2-250M-4 | 55 | 75 | 106 | 350.2 | 5-50 | 50-100 | 415 | ||||
| YVF2-280S-4 | 75 | 100 | 141 | 477.5 | 5-50 | 50-100 | 1.7 | 538 | |||
| YVF2-280M-4 | 90 | 125 | 167 | 573 | 5-50 | 50-100 | 646 | ||||
| YVF2-315S-4 | 110 | 150 | 201 | 700.3 | 5-50 | 50-100 | 917 | ||||
| YVF2-315M-4 | 132 | 180 | 241 | 840.4 | 5-50 | 50-100 | 1088 | ||||
| YVF2-315L1-4 | 160 | 220 | 288 | 1018.7 | 5-50 | 50-100 | 1105 | ||||
| YVF2-315L-4 | 185 | 250 | 333 | 1177.8 | 5-50 | 50-100 | 1115 | ||||
| YVF2-315L24 | 200 | 270 | 359 | 1273.3 | 5-50 | 50-100 | 1240 | ||||
| YVF2-355M1-4 | 220 | 300 | 395 | 1400.7 | 5-50 | 50-75 | 1520 | ||||
| YVF2-355M2-4 | 250 | 340 | 449 | 1591.7 | 5-50 | 50-75 | 1598 | ||||
| YVF2-355L1-4 | 280 | 380 | 503 | 1782.7 | 5-50 | 50-75 | 1680 | ||||
| YVE2-355L2-4 | 315 | 430 | 566 | 2005.5 | 5-50 | 50-75 | 1820 | ||||
| 同步轉速1000rmin(6極)Synchronous Speed1000rmin(6P） | |||||||||||
| YVF2-90S-6 | 0.75 | 1 | 380 | 226 | 7.2 | 5-50 | 50-100 | 1.9 | 2.8 | 9 | 21 |
| YVF2-90L-6 | 1.1 | 1.5 | 3.18 | 10.5 | 25 | ||||||
| YVF2-100L-6 | 1.5 | 2 | 4.21 | 14.3 | 34 | ||||||
| YVF2-112M-6 | 2.2 | 3 | 6 | 21 | 40 | ||||||
| YVF2-132S-6 | 3 | 4 | 7.9 | 28.7 | 62 | ||||||
| YVF2-132M1-6 | 4 | 5.5 | 10.1 | 38.2 | 72 | ||||||
| YVF2-132M2-6 | 5.5 | 7.5 | 13.4 | 52.5 | 83 | ||||||
| YVF2-160M-6 | 7.5 | 10 | 17.2 | 71.6 | 110 | ||||||
| YVF2-160L-6 | 11 | 15 | 24.5 | 105.1 | 132 | ||||||
| YVF2-180L-6 | 15 | 20 | 31.7 | 143.3 | 180 | ||||||
| YVF2-200L1-6 | 18.5 | 25 | 39.7 | 176.7 | 227 | ||||||
| YVF2-200L2-6 | 22 | 30 | 46.3 | 210.1 | 239 | ||||||
| YVF2-225M-6 | 30 | 40 | 61.6 | 286.5 | 296 | ||||||
| YVF2-250M-6 | 3 | 50 | 74.6 | 353.4 | 392 | ||||||
| YVF2-280S-6 | 45 | 60 | 88 | 429.8 | 491 | ||||||
| YVF2-280M-6 | 55 | 75 | 106 | 525.3 | 561 | ||||||
| YVF2-315S-6 | 75 | 100 | 147 | 716.3 | 1.6 | 871 | |||||
| YVF2-315M-6 | 90 | 125 | 173 | 859.5 | 996 | ||||||
| YVF2-315L1-6 | 110 | 150 | 211 | 1050.5 | 1060 | ||||||
| YVF2-315L2-6 | 132 | 180 | 249 | 1260.6 | 1106 | ||||||
| YVF2-355M1-6 | 160 | 220 | 301 | 1528 | 1500 | ||||||
| YVF2-355M2-6 | 185 | 250 | 348 | 1766.8 | 1545 | ||||||
| YVF2-355M3-6 | 200 | 270 | 376 | 1910 | 1640 | ||||||
| YVF2-355L1-6 | 220 | 300 | 413 | 2101 | 1690 | ||||||
| YVF2-355L3-6 | 250 | 340 | 470 | 2387.5 | 1810 | ||||||
| YVF2-355L4-6 | 280 | 380 | 526 | 2674.0 | 1850 | ||||||
| 同步轉速750r/min(8極)Synchronous Speed750r/min(8P) | |||||||||||
| YVF2-100L1-8 | 0.75 | 1 | 380 | 2.78 | 9.6 | 5-50 | 50-100 | 2 | 2.8 | 9 | 29 |
| YVF2-1002-8 | 1.1 | 1.5 | 3.64 | 14 | 31 | ||||||
| YVF2-112M-8 | 1.5 | 2 | 4.64 | 19.1 | 40 | ||||||
| YVF2-132S-8 | 2.2 | 3 | 6.3 | 28 | 54 | ||||||
| YVF2-132M-8 | 3 | 4 | 81 | 38.2 | 2.2 | 65 | |||||
| YVF2-160M1-8 | 4 | 5.5 | 11.2 | 50.9 | 91 | ||||||
| YVF2-160M2-8 | 5.5 | 7.5 | 14.7 | 70 | 98 | ||||||
| YVF2-160L-8 | 7.5 | 10 | 19.2 | 95.5 | 121 | ||||||
| YVF2-180L-8 | 11 | 15 | 27.4 | 140.1 | 166 | ||||||
| YVF2-200L-8 | 15 | 20 | 36.1 | 191 | 223 | ||||||
| YVF2-225S-8 | 18.5 | 25 | 43.5 | 235.6 | 265 | ||||||
| YVF2-225M-8 | 22 | 30 | 49.7 | 280.1 | 293 | ||||||
| YVF2-250M-8 | 30 | 40 | 66.4 | 382 | 2 | 386 | |||||
| YVF2-280S-8 | 37 | 50 | 81.4 | 471.1 | 485 | ||||||
| YVF2-280M-8 | 45 | 60 | 98 | 573 | 545 | ||||||
| YVf2-315S-8 | 55 | 75 | 116 | 700.3 | 828 | ||||||
| YVF2-315M-8 | 75 | 100 | 158 | 955 | 828 | ||||||
| YVF2-315L1-8 | 90 | 125 | 186 | 1146 | 958 | ||||||
| YVF2-315L2-8 | 110 | 150 | 226 | 1400.7 | 968 | ||||||
| YVF2-355M1-8 | 132 | 180 | 270 | 1680.8 | 1040 | ||||||
| YVF2-355M2-8 | 160 | 220 | 325 | 2037.3 | 1535 | ||||||
| YVF2-355L1-8 | 185 | 250 | 375 | 2355.7 | 1615 | ||||||
| YVF2-355L2-8 | 200 | 270 | 403 | 2546.7 | 1705 | ||||||
| 同步轉速600r/min(10極)Synchronous Speed600r/min(10P) | |||||||||||
| YVF2-160M-10 | 4 | 5.5 | 380 | 11.8 | 63.7 | 5-50 | 50-100 | 1.1 | 1.9 | 6.3 | 83 |
| YVF2-160L-10 | 5.5 | 7.5 | 15.8 | 87.5 | 1.1 | 1.9 | 84 | ||||
| YVF2-180L-10 | 7.5 | 10 | 21 | 119.4 | 1.1 | 1.9 | 113 | ||||
| YVF2-200L-10 | 11 | 15 | 29.4 | 175.1 | 1.1 | 1.9 | 155 | ||||
| YVF2-225S-10 | 15 | 20 | 38.7 | 238.8 | 1.1 | 1.9 | 208 | ||||
| YVF2-225M-10 | 18.5 | 25 | 45.2 | 294.5 | 1.1 | 1.9 | 252 | ||||
| YVF2-250M-10 | 22 | 30 | 51.9 | 350.2 | 1.1 | 1.9 | 285 | ||||
| YVF2-280S-10 | 30 | 40 | 69.2 | 477.5 | 1.1 | 1.9 | 366 | ||||
| YVF2-280M-10 | 37 | 50 | 82.6 | 588.9 | 1.1 | 1.9 | 460 | ||||
| YVF2-315S-10 | 45 | 60 | 99.6 | 716.3 | 1.2 | 2 | 6.5 | 787 | |||
| YVF2-315M-10 | 55 | 75 | 121 | 875.4 | 1.2 | 2 | 856 | ||||
| YVF2-315L1-10 | 75 | 100 | 162 | 1193.8 | 1.2 | 2 | 964 | ||||
| YVF2-315L2-10 | 90 | 125 | 191 | 1432.5 | 1.2 | 2 | 1036 | ||||
| YVF2-355M1-10 | 110 | 150 | 230 | 1750.8 | 1.2 | 2 | 1527 | ||||
| YVF2-355M2-10 | 132 | 180 | 275 | 2101 | 1.2 | 2 | 7 | 1607 | |||
| YVF2-355L1-10 | 160 | 220 | 333 | 2546.7 | 1.2 | 2 | 1700 | ||||
| YVF2-355L2-10 | 185 | 250 | 385 | 2944.6 | 1.2 | 2 | 1780 | ||||
